Area range
36.0 - 76.4 m²
Average 56.5 m² across filtered plans.
Hybrid Tool + Decision ReportPublished March 2, 2026Sources reviewed March 2, 2026
Granny Flat Floor Plans: Tool + Decision Guide
Use this granny flat floor plans page to shortlist layouts and validate your reasoning. Start with the browser tool for immediate results, then use the report layer to check method, data boundaries, competitor context, and risk controls before you commit to quote.
Jump to report sections
Tool layer: explore floor plans by bedroom count
3 plans
Input: choose bedroom class and optional filter. Output: ranked plan cards with specs and direct product links.
Boundary reminder: plan cards support shortlist decisions, while final compliance and engineering suitability require quote-stage checks.
Source mix
3 expandable / 0 modular
Compare both systems before final layout commitment.
Evidence boundary
3 plans with configurable bath data
Confirm final wet-area spec during quote review.
Result interpretation
Applies when: Best for solo occupancy, work-from-home suites, or compact secondary dwellings where floor area efficiency matters most.
Not ideal when: Not ideal when you need fully separated sleeping zones or plan to host families for long stays.
Next action: If storage demand is high, compare the 1 Bedroom tab before locking your shortlist.

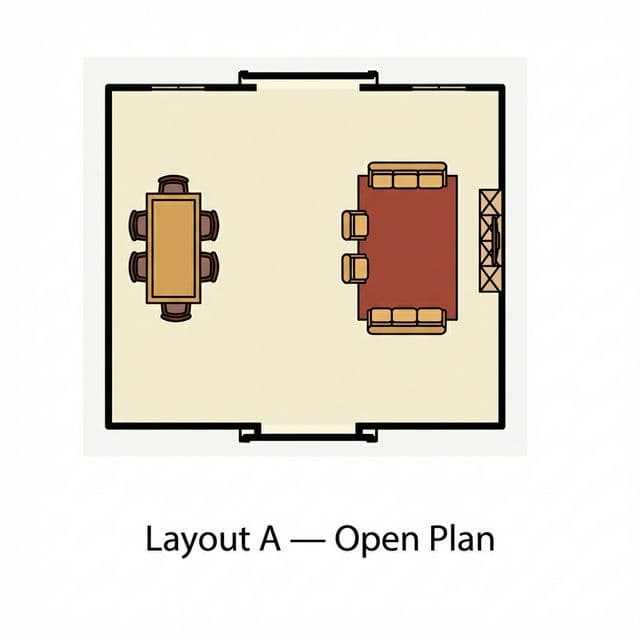

20ft Container layout
Open Plan
Premium Expandable Granny Flat
Floor area
36 m²
Dimensions
5.85 × 6.30 × 2.48 m (expanded)
Bedrooms
Studio / open plan
Bathrooms
Configurable
Wide open 36 m² space — ideal for studio, office, or custom fit-out.
30ft Container layout
Open Plan
Premium Expandable Granny Flat
Floor area
57.24 m²
Dimensions
9 × 6.37 × 2.48 m (expanded)
Bedrooms
Studio / open plan
Bathrooms
Configurable
Wide open 57 m² space — ideal for studio, workshop, or custom fit-out.
40ft Container layout
Open Plan
Premium Expandable Granny Flat
Floor area
76.40 m²
Dimensions
12 × 6.37 × 2.48 m (expanded)
Bedrooms
Studio / open plan
Bathrooms
Configurable
Massive 76 m² open space — the ultimate blank canvas for luxury studios, commercial spaces, or custom fit-outs.
Tool-first workflow
Start with bedroom class, filter by series, and receive decision-ready plan cards in one interaction.
Structured result feedback
Each state explains fit boundaries, uncertainty markers, and a direct next action instead of raw listings only.
Report-backed trust layer
Method, source lineage, comparison context, and risk controls are visible without leaving this URL.
Indexed plans
21
Total plans currently available in this tool layer across expandable and modular products.
Dominant category
1 Bedroom
11 plans currently indexed in this class.
Area coverage
32.0 m² - 140.0 m²
Median area 48.0 m² from available plan records.
Key conclusions for shortlist decisions
These conclusions were refreshed with external policy and statistics checks on March 2, 2026. Each statement now includes traceable evidence or an explicit uncertainty marker.
1) 2BR is a local midpoint, not a universal default
Current catalog share: 3/21 plans in 2BR (14.3%). Compact classes (Studio+1BR) still represent 14/21 (66.7%). ABS 2021 also reports 25.6% lone-person households nationally, so occupancy evidence should drive bedroom selection before footprint expansion.
Sources: ABS Census 2021 and ABS Projections (released June 28, 2024)
2) Regulatory caps can disqualify a plan before pricing
In NSW, secondary dwellings are capped at 60 m² unless another planning instrument allows more, and detached secondary dwellings under CDC require at least 450 m² lot area. A shortlist that ignores this gate can fail even when budget looks acceptable.
Source: NSW Housing SEPP 2021 (in force, checked March 2, 2026)
3) Footprint is not equal to fully usable area
NCC 2022 room-height rules set minimum vertical limits (2.4 m habitable rooms; 2.1 m wet and circulation spaces), and floor area below 1.5 m height is excluded from floor-area calculations. Treat lofted/sloped zones as geometry checks, not guaranteed usable area.
4) CDC speed advantage is conditional, not automatic
NSW Planning Portal states CDC can be approved in as little as 20 days when standards are met. If those standards are missed, the pathway shifts and timeline certainty drops. National bedroom-by-bedroom approval timing benchmarks remain pending in public data.
Category distribution
Expandable vs modular mix
Expandable: 10 plans, Modular: 11 plans.
Evidence certainty band
Known: 17 / Configurable: 4 / Unknown: 0.
Stage1b gap audit and evidence upgrades
This audit tracks where the previous version lacked support and what was added in this round. Review timestamp: March 2, 2026.
| Gap identified | Why it was weak | Effective information increment | Status |
|---|---|---|---|
| Flexibility claims leaned on internal catalog reading only. | No external demand baseline was attached to explain when compact versus multi-bedroom plans are rational. | Added ABS household facts (2021 Census + 2024 projections) and tied them to bedroom-class branching rules. | Closed with source-backed update |
| Regulatory disqualifiers were too generic. | Previous copy warned about approval risk but did not show hard trigger thresholds for common NSW pathways. | Added NSW Housing SEPP clause references (60 m² cap, 450 m² lot gate, no subdivision) with dated links. | Closed for NSW scope; other states remain local-council dependent |
| Design-boundary guidance lacked standards-level detail. | Readers could misread floor area as fully usable area without ceiling-height constraints. | Added NCC 2022 Part 10.3 height boundaries (2.4 m / 2.1 m / 2.0 m and <1.5 m exclusion). | Closed with standards citation |
| Timeline expectations were over-simplified. | No explicit pathway comparison was included for fast-track versus merit-assessed approvals. | Added CDC versus DA trade-off matrix and marked unknown national timing benchmarks as pending. | Closed with explicit uncertainty markers |
Who this page is for (and not for)
Use this matrix to avoid class mismatch before you request a quote.
| Use case segment | Best fit class | Usually not fit | Reason |
|---|---|---|---|
| Solo rental, office annex, guest overflow | Studio, 1 Bedroom | 3 Bedroom | Higher bedroom counts add footprint and cost without matching occupancy demand. |
| Couples or downsizer long-stay use | 1 Bedroom, 2 Bedroom | Studio | Bedroom separation improves privacy and furniture flexibility for longer tenancies. |
| Family annex, multi-occupant rental | 2 Bedroom, 3 Bedroom | Studio | Multi-room layouts reduce mismatch risk when occupancy profile changes over time. |
| Tight access block with logistics constraints | Studio, 1 Bedroom | 3 Bedroom | Compact classes reduce transport and setup complexity before final engineering. |
External policy, standards, and demand signals
These signals were added in stage1b to convert generic advice into source-backed decision rules with explicit scope boundaries.
| Signal | Verified fact | Time and scope boundary | Decision impact |
|---|---|---|---|
| Household demand baseline | ABS 2021 Census reports average household size of 2.5 people and lone-person households at 25.6% of occupied private dwellings. | 2021 Census dataset: National population mix, not granny-flat-only occupancy data. | Use Studio/1BR/2BR as first branch and avoid auto-defaulting to 3BR without occupancy proof. |
| Future occupancy drift | ABS Household and Family Projections (released June 28, 2024) estimate 3.4-4.0 million lone-person households by 2046, representing about 26-28% of households. | 2021-2046 projection range: Scenario-based projection, not a guaranteed local suburb trajectory. | If use case is rental or downsizer annex, compare 1BR/2BR flexibility before committing to larger footprints. |
| Room-height compliance boundary | NCC 2022 Housing Provisions Part 10.3 sets 2.4 m minimum height for habitable rooms (excluding kitchen), 2.1 m for kitchen/laundry/bathroom/corridor spaces, and 2.0 m above stair paths. | NCC 2022 adopted text: Jurisdiction adoption dates vary; always confirm local commencement status. | Do not treat plan footprint as fully equivalent usable area until vertical geometry checks are complete. |
| Energy-performance specification shift | The Australian Government confirms NCC 2022 raises new-home energy requirements to a 7-star NatHERS equivalent with a whole-of-home energy budget from October 1, 2023. | Policy update published February 23, 2026: States and territories adopt NCC updates at different times and can apply local variations. | Open-plan glazing and orientation decisions in floor plans can change envelope cost and compliance strategy. |
| NSW floor-area and lot-size gate | NSW Housing SEPP 2021 states a secondary dwelling cannot exceed 60 m² unless another environmental planning instrument allows more, and detached secondary dwellings under complying development need at least 450 m² lot area. | Consolidated NSW legislation in force (effective February 6, 2026): NSW-specific pathway; interstate councils and instruments differ materially. | Plans above 60 m² or on smaller lots can trigger redesign or a different approval pathway. |
| Fast-track approval condition | NSW Planning Portal states complying development certificates can be approved in as little as 20 days when all pre-set standards are met. | Planning Portal page last updated October 2, 2025: This is a best-case pathway signal, not a guaranteed timeline for all sites. | Aligning the shortlisted plan to CDC standards can materially reduce approval-cycle risk. |
Method and evidence layer
Method and source disclosure is included so shortlist confidence is auditable and uncertainty stays visible.
Tool logic and boundary conditions
| Stage | Implementation | Boundary |
|---|---|---|
| Normalize inventory | Merge expandable configurator plans and modular catalog plans into one comparable card model. | Some entries expose configurable bathroom or fit-out dependent values only. |
| Categorize by bedrooms | Classify each plan into Studio / 1BR / 2BR / 3BR using parsed room-layout labels. | Descriptions without bedroom signals are excluded rather than guessed. |
| Expose decision fields | Surface floor area, dimensions, bedroom and bathroom markers, plus product and quote links. | Values labeled as configurable must be rechecked in quote and technical review. |
| Guide action per result state | Attach fit/not-fit interpretation and CTA to every filtered state to avoid dead-end browsing. | Tool output supports shortlist decisions, not compliance sign-off. |
Data source ledger
Sources below are reviewed as of March 2, 2026. Items marked uncertain should be verified during quoting.
| Source | Type | Reviewed on | Coverage | Known uncertainty |
|---|---|---|---|---|
| ABS Census QuickStats (Australia, 2021 Census) | Official statistics | March 2, 2026 | Average household size and lone-person household share for occupancy planning context | National macro data; does not isolate granny-flat tenancy segments |
| ABS Household and Family Projections, Australia (released June 28, 2024) | Official projections | March 2, 2026 | Projected growth and share range for lone-person households through 2046 | Scenario-based model output, not deterministic local outcomes |
| ABCB NCC 2022 Housing Provisions Part 10.3 room heights | National building standard | March 2, 2026 | Minimum room-height thresholds and floor-area exclusions relevant to layout usability checks | Jurisdiction adoption timing and local variations may alter commencement |
| NSW Housing SEPP 2021 (current consolidated legislation) | Primary legislation | March 2, 2026 | Secondary dwelling floor-area cap, lot-size gate, and no-subdivision condition in NSW | State-specific legal scope; councils can apply additional controls |
| NSW Planning Portal - Complying development certificate guidance | Regulatory guidance | March 2, 2026 | Fast-track approval conditions and documented as-little-as 20-day pathway signal | Timeline is conditional on full standards compliance and complete documentation |
| Service NSW - Apply for a planning certificate (Section 10.7) | Regulatory process guidance | March 2, 2026 | Planning certificate scope includes local planning controls and hazards such as flooding, bushfire, and contamination markers | Certificate contents vary by site and council records, so timing/impact remains case specific |
| Australian Government DCCEEW - Residential buildings (NCC 2022) | Federal policy guidance | March 2, 2026 | 7-star NatHERS equivalent and whole-of-home energy budget requirement shift | State-by-state adoption timing varies and can affect project commencement assumptions |
| Premium Expandable Granny Flat configurator dataset | Internal structured catalog | March 2, 2026 | Expandable layout names, dimensions, floor area, summaries | Bathroom count may vary by fit-out package |
| AluModular residential product catalog | Internal structured catalog | March 2, 2026 | Module dimensions, floor area references, room layouts | Some floor area fields defer to product detail pages |
| grannyflatswa.com floor plans brochures | External benchmark | March 2, 2026 | SERP baseline for gallery and brochure UX patterns | External catalog depth and inventory can change without notice |
| backyardgrannys.com.au granny flat designs | External benchmark | March 2, 2026 | Bedroom-class navigation and CTA baseline | Product packaging and spec labeling may not match our catalog |
| grannyflatbuilders-sydney.com.au floor plan gallery | External benchmark | March 2, 2026 | Competitor comparability and visual hierarchy references | Cross-page comparison depth is inferred from sampled pages |
| grannyflatsolutions.com.au floor plans range | External benchmark | March 2, 2026 | Bedroom-range framing and shortlist handoff expectations | Layout metadata completeness varies by listing |
Competitor comparison baseline
Comparative signals are from sampled Australian floor-plan SERP pages reviewed on March 2, 2026. This table is used to prevent parity-only execution.
| Dimension | This page | Granny Flats WA | Backyard Grannys | Sydney Builder Gallery |
|---|---|---|---|---|
| Single URL tool + report coverage | Yes (interactive tool, evidence, comparison, risk in one page) | Mostly brochure-focused | Category pages split by bedroom | Gallery-heavy with weaker structured specs |
| Cross-series comparability on same screen | Yes (expandable and modular in one filter set) | Limited | Limited | Partial |
| Boundary disclosure near results | Yes (configurable/varies + assumptions and risks) | Rare | Rare | Rare |
| Result-state action path | Yes (product detail + quote path per plan state) | Generic CTA | Generic CTA | Mixed |
| Method and source transparency | Yes (method flow + source table + review date) | Minimal | Minimal | Minimal |
Approval pathway trade-offs (NSW reference model)
This matrix separates pathway speed assumptions from pathway eligibility. Use it after shortlist filtering and before deposit commitments.
| Pathway | Speed signal | When it fits | Failure mode | Evidence basis |
|---|---|---|---|---|
| Complying Development Certificate (CDC) - NSW | Planning Portal indicates approval can be issued in as little as 20 days when standards are met. | Best for straightforward sites that can satisfy pre-set standards, including detached secondary dwelling lot-size and planning controls. | If standards are not met (for example lot/context constraints), the pathway can fail and force redesign or DA. | NSW Planning Portal + Housing SEPP clause set |
| Development Application (DA) - NSW | No single statewide statutory turnaround benchmark in reviewed sources; assessment is case and council dependent. | Best when site context or floor-plan scope falls outside CDC standards and needs merit assessment. | Longer cycle risk increases when additional reports are needed (for example flood, bushfire, contamination context). | NSW Planning process guidance + planning certificate scope |
Risk and constraint controls
These controls reduce false-confidence decisions from shortlist-only browsing.
Risk matrix
Assumptions and limitations
Floor-plan summaries support shortlist decisions only. Final engineering, compliance interpretation, and inclusion scope can change outcomes even when bedroom class stays the same.
Always verify site access, service routing, and authority requirements before paying deposits or locking build timelines.
| Code | Risk | Probability | Impact | Mitigation | Fallback path |
|---|---|---|---|---|---|
| A | Selecting bedroom count without checking occupancy change horizon | Medium | High | Stress-test current shortlist against 12-24 month household or tenant scenarios. | Re-run tool with next-bedroom category before quote. |
| B | Treating configurable bathroom values as final construction scope | High | Medium | Use quote workflow to lock fit-out package and wet-area inclusions early. | Flag unknown bathroom values in quote brief for explicit confirmation. |
| C | Assuming floor-plan shortlist equals approval feasibility | Medium | High | Run policy and compliance review after layout shortlist but before purchase commitment. | Use policy research route and certifier/council checks. |
Evidence gaps kept explicit (no forced conclusions)
We intentionally keep these items marked as pending because reliable public datasets were not confirmed in this cycle.
| Decision topic | Current evidence status | Impact if ignored | Minimum executable path |
|---|---|---|---|
| National granny-flat approval duration by bedroom count | Pending confirmation: no reliable public national dataset identified in this review cycle. | Timeline estimates should not be derived from bedroom count alone. | Capture council-level benchmark and certifier advice during quote scoping. |
| National rental premium delta by granny-flat bedroom class | Pending confirmation: publicly comparable cross-state dataset was not found in authoritative sources. | Revenue assumptions can be materially overstated when bedroom uplift is treated as linear. | Validate local suburb rents using current property-manager comparables before design lock. |
Scenario walkthroughs
Use these examples as practical templates for moving from tool output to a decision-grade quote brief.
Scenario 1: Backyard office + occasional guests
Assumptions: Single user, occasional overnight guests, tight access block, lower setup complexity target.
Recommended path: Start with Studio and 1 Bedroom classes; prioritize layouts with simpler service routing.
Boundary: If usage shifts to long-stay tenancy, recheck 2 Bedroom class before quote.
Use this scenario in quoteScenario 2: Couples rental with future flexibility
Assumptions: Long-term rental focus, privacy requirements, moderate budget flexibility.
Recommended path: Begin in 1 Bedroom, then compare 2 Bedroom area uplift against likely rental premium.
Boundary: If site width is constrained, verify footprint and transport assumptions during quote.
Use this scenario in quoteScenario 3: Family annex for multi-occupant use
Assumptions: Two or more regular occupants, bedroom separation needed, higher service load expected.
Recommended path: Shortlist 2 Bedroom and 3 Bedroom classes and validate bathroom configuration explicitly.
Boundary: Do not treat shortlist as compliance approval; run policy and engineering checks next.
Use this scenario in quoteRelated planning tools
Extend layout selection into budget, policy, and full model comparisons.
Floor plan FAQ by decision type
Questions are grouped to support selection, evidence checks, and risk-aware action planning.
Layout fit and selection
Data quality and evidence boundaries
Compliance, risk, and next actions
Need a tailored floor-plan recommendation for your site?
Send postcode, occupancy intent, shortlist class, and target timeline. We will map your best-fit models and the fastest quote path.
